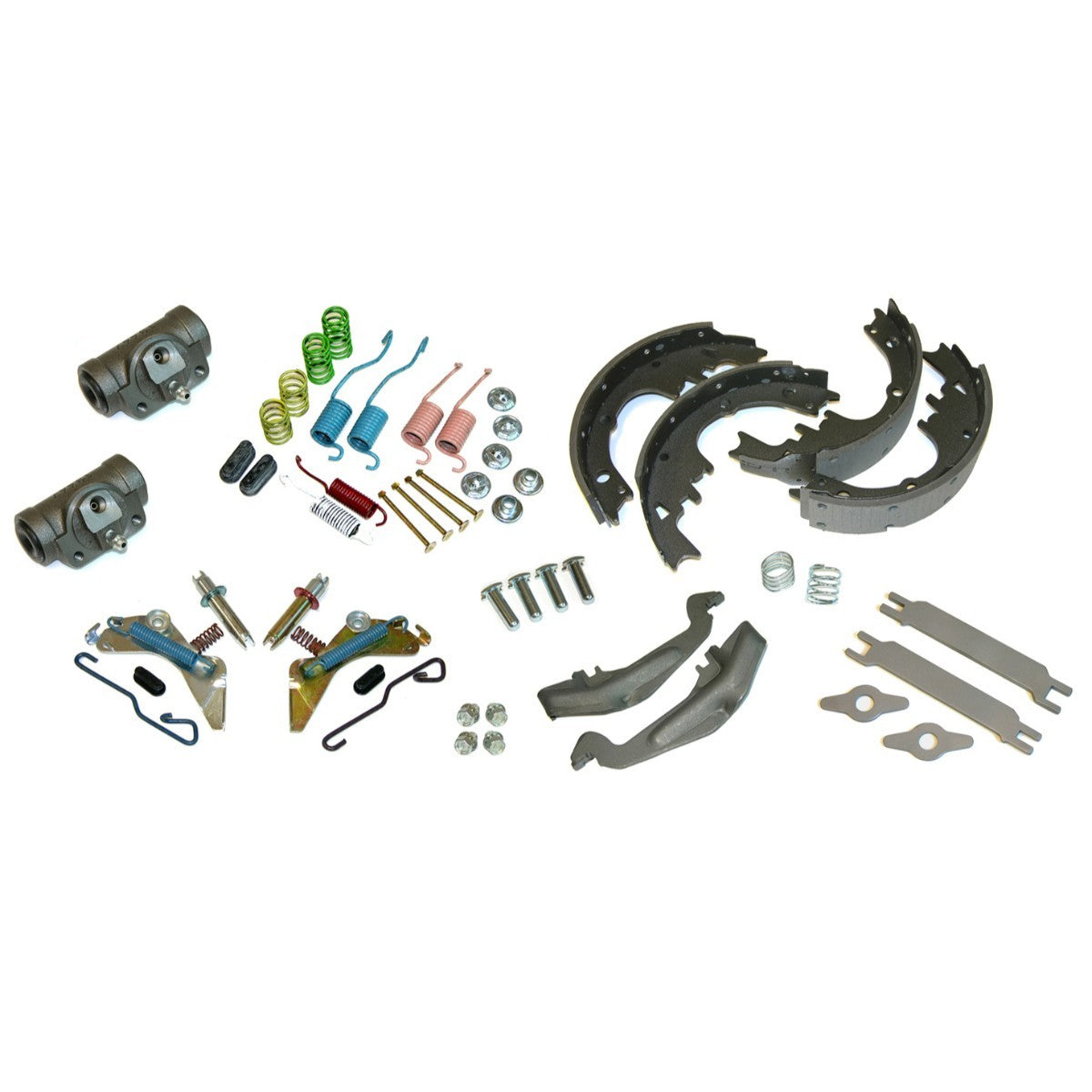

1964-77 GM A-Body, 1967-79 F-Body, 1968-74 X-Body 9-1/2" Rear Drum Rebuild Kit

INL14593

Inline Tube stocks more than just full drum brake assemblies and the individual component parts. We also stock a variety of rebuild kits that range from including just hardware and shoes to everything but the backing plates.

This is a rebuild kit for 9-1/2” rear drum brakes.

Includes:

· Shoes

· Right & left rear parking brake levers

· Springs

· Right & left adjusting hardware

· Wheel cylinders with pins & bolts

· Space bars & washers

Sale price: $235.00
Retail Price: $235.00
